800 Watts BackPlane UPS
PowergridM800 Watts UPS – BackPlane Module BPM DC Output – Military UPS – Military Power Conditioner
Part Number: PG800-UPS-BPM-DCxx (xx=12/24/28/48)

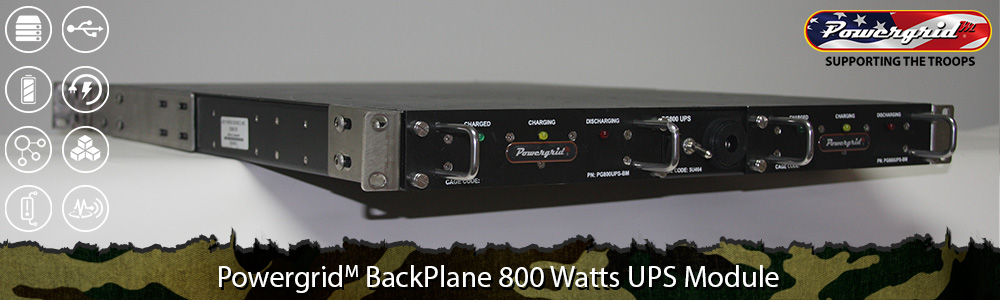

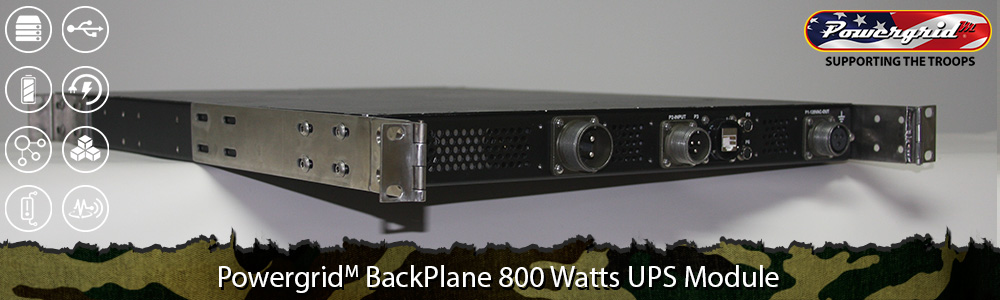

The PowergridM 800 UPS BPM Is a Rugged 800 Watts Full Double Conversion Rackmount Uninterruptible Power Supply in a 1U (1.73” High) Rugged Chassis That is 21.75” in Length Weighing Less Than 26 Pounds Designed to Interconnect to the PowergridM BackPlane Module (BPM). Military UPS – Military Power Conditioner
The PowergridM BackPlane technology allows up to five (5) of the PowergridM 800-BPM-DC units to be integrated into the PowergridM BPM to create an 800, 1600, 2400, 3200, or 4000 Watts Uninterruptible Power Solution. The DC output voltage of each BackPlane incorporated DC UPS is combined on to a composite DC voltage bus within the backplane which provides connections for the VDC output connections for user equipments.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
Highlights
• Ruggedized 1U 800 Watts UPS weighing less than 26 Lbs.
• DC Output can be configured for 12VDC, 24VDC, 28VDC, or 48VDC.
• Stack & Interconnect Design for 800/1600/2400/3200/4000 Watts.
• Dual Hot Swap Battery Modules @ 3 Lbs Each – 9+ Min Hold Time.
• AC/DC Input Power BackPlane Connections with Auto Sensing/Switching.
• Dual Computer Controlled Inverter N+1 Design.
• Over Voltage Capacity for Managed In-Rush and Startup Demands.
• Over Voltage and Over Temperature Protection Circuits.
• SNMP Based Network Connectivity for Monitoring & Status Reporting hosted within the BPM.
• Audible Power Loss Alarm.
• Lightning Protection & Safety Ground Connection via the BPM.
1U 800 watts UPS – Standalone Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 800 watts UPS – BackPlane Stackable to:
1600 watts UPS | 2400 watts UPS | 3200 watts UPS | 4000 watts UPS
1U 1000 watts UPS – Standalone Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Standalone Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Standalone Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
1U 1500 VA UPS – Backplane Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS | 7200 VA UPS
1U 1200 watts UPS – Backplane Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS | 6000 watts UPS
2U 3000 VA UPS – Standalone Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
-
- AC Input Voltage: 100 – 264 VAC, 47 – 63, 400 Hz. (Single, Dual, and Three Phase options available).
- DC Input Voltage: 22 – 30 VDC. (MIL-STD-1275 Compliant).
- Battery Backup: 9 minutes at 25C, 80% Load.
- Harmonic Distortion: <2% with resistive load.
- Output Power: 800 Watts VDC (12/24/28/48VDC options available)
- Efficiency: 80%.
- Startup Time: <30 Seconds.
• Status Monitoring & Reporting: SNMP Hosted by the BPM.
• Physical Dimensions: 1.73”H/17.1”W/21.75”D.
• Cooling: Rear panel based internal airflow.
• Weight: 25 Lbs.
• Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating.
• Temperature: – 20 to +50C.
• Humidity: 0-95% non-condensing.
• Fungus: In accordance with MIL-STD-810G.
• Sand & Dust: MIL-STD-810G (with optional filters).
• Vibration: MIL-STD-810G – Test Reports Available.
• Functional Shock: MIL-STD-810G – Test Reports Available. -
